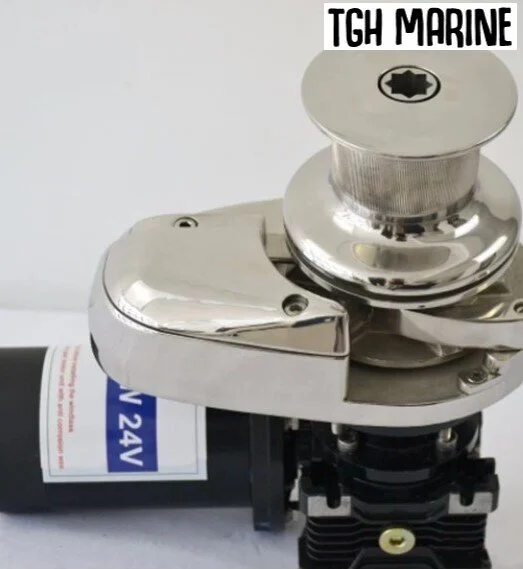

Vertical rope & chain Windlass with drum SS 316 8MM Gypsy

Quality NYS branded Windlass

Check out other brands performance specifications & compare to NYS performance. NYS out perform most even when they have larger motor’s

High quality 316 stainless steel mirror finish above deck

Modular design incorporating precise gearbox alignment

Rope recommendation 16mm to 18mm three strand nylon (We stock this rope and chain section)

The fully sealed gearbox is driven by a vertically driven permanent magnet motor

Gearbox housings are marine grade alloy

The motor can be mounted in four different positions for easier installation

Input power 12V

Motor 800W

No load absorption 100A

Maximum load 250KG

Maximum pull 700KG

Line speed 20m/min

ISO9000 company producing NYS windlass since 2004

Complete with the following

Windlass

Up down switch

Reversing solenoid

Circuit breaker

Clutch handle

User Manual

Below warranty for non-commercial use

3 Year warranty on hardware

1 year warranty on electrical

Pick up in Hunua by appointment only
